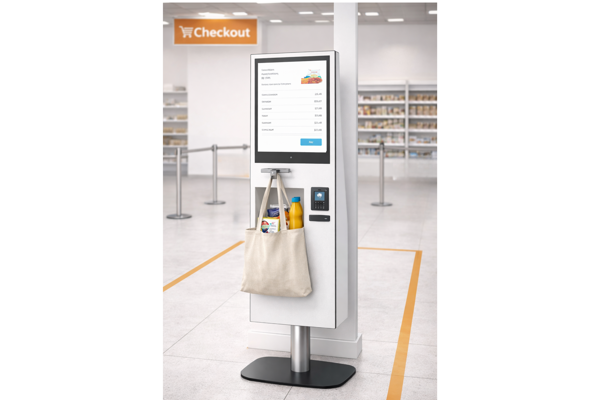

Our self check-out RFID configuration is designed to enable fast, accurate validation of shopping bags or totes without requiring individual item scanning. This configuration demonstrates how RFID antennas can be integrated into a self check-out kiosk to create a reliable and efficient validation zone. The result is a streamlined checkout process that reduces staff intervention, minimises errors, and enhances the overall customer experience.

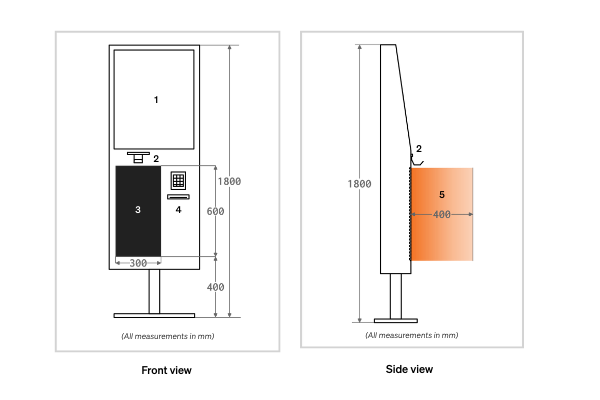

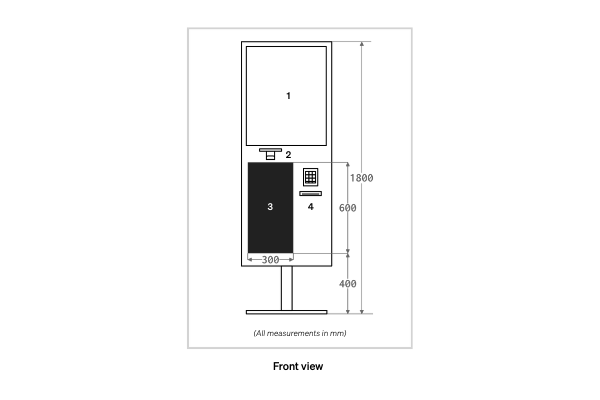

Provides the user interface for transaction processing, item confirmation, and payment selection. Positioned at eye level for clear visibility and ease of interaction.
Placement apparatus for the customer’s bag or tote. Items remain inside the bag during the transaction, enabling full basket validation without unpacking.
Flush-mounted within the kiosk structure, the antenna creates a controlled near-field read zone. Its positioning ensures optimal coverage of the bag area while minimising stray reads from surrounding environments.
Handles transaction completion. Located outside the primary read zone to avoid interference and ensure a seamless user experience.

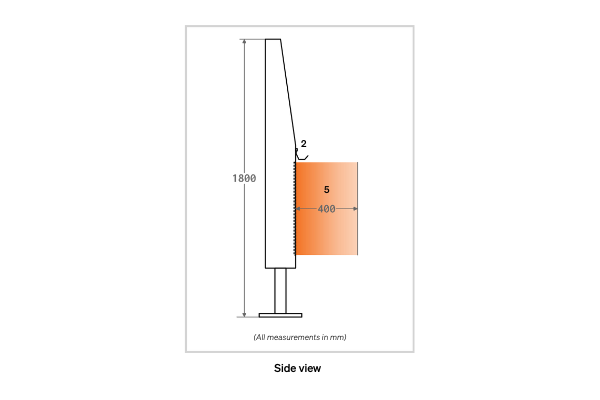

The active RFID read area where tagged items are detected.
When the bag is positioned within this zone:
Please note: This is representative of a deployment configuration for the specified application. It does not encompass all possible installation scenarios or environmental variables. For applications with unique specifications, Times-7 offers custom antenna design services.
The system operates according to the following process:

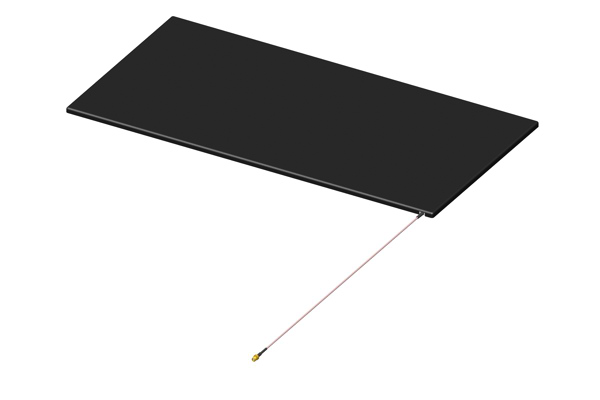

This process is enabled through the integration of the A1163 True NearField™ Antenna, which defines and maintains the read zone that supports the validation process.
Discreet, easy integration
Slim, low-profile form factor enables seamless installation within self check-out counters.
Accurate, controlled item validation
Near-field technology creates a well-defined read zone, ensuring precise item-level detection without stray reads or adjacent lane interference.
Efficient processing
Supports simultaneous reading of all items within a bag or tote, eliminating the need for unpacking and repacking.
Reliable performance in retail environments
Consistent read performance across mixed merchandise, including liquids, metals, and densely packed items.
High-capacity item handling
Designed to manage high tag populations, enabling smooth processing of multi-item transactions.
This setup provides a practical reference for retailers looking to implement scalable, high-performance RFID-enabled self check-out solutions.
