Our self check-out RFID configuration illustrates a fast, accurate validation of shopping bags or totes without requiring individual item scanning. This configuration demonstrates how RFID antennas can be integrated into a self check-out kiosk to create a reliable and efficient validation zone. The result is a streamlined checkout process that reduces staff intervention, minimises errors, and enhances the overall customer experience.

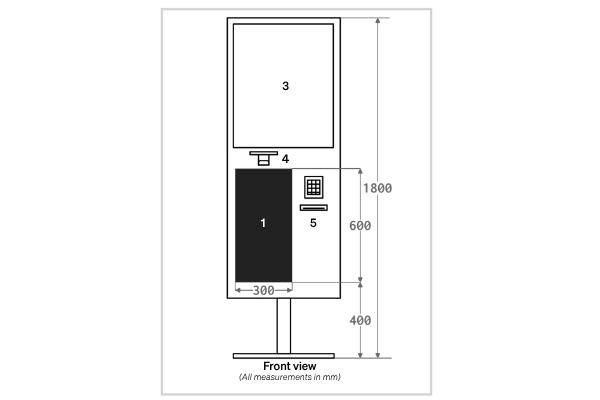

Flush-mounted within the kiosk structure, the antenna creates a controlled near-field read zone. Its positioning ensures optimal coverage of the bag area while minimising stray reads from surrounding environments.

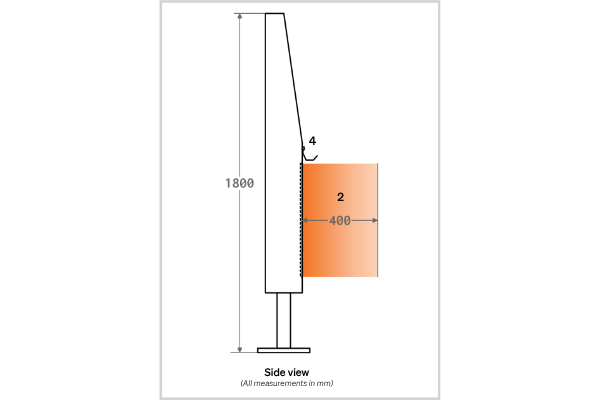

The active RFID read area where tagged items are detected.
When the bag is positioned within this zone:
Provides the user interface for transaction processing, item confirmation, and payment selection. Positioned at eye level for clear visibility and ease of interaction.
Placement apparatus for the customer’s bag or tote. Items remain inside the bag during the transaction, enabling full bag validation without unpacking.
Handles transaction completion. Located outside the primary read zone to avoid interference and ensure a seamless user experience.
Please note: This is representative of a deployment configuration for the specified application. It contains general use guidelines for A1163 and the self check-out application. For applications with unique specifications, Times-7 offers custom antenna design services.
The system operates according to the following process:
This process is enabled through the integration of the A1163 True NearField™ Antenna, which defines and maintains the read zone that supports the validation process.
Discreet, easy integration
Slim, low-profile form factor enables seamless integration within self check-out counters.
Accurate, controlled item validation
A large, well-defined read zone accommodates bags of varying sizes, while near-field technology ensures precise item-level detection within the intended area. This controlled environment minimises stray reads and prevents interference from adjacent lanes.
Efficient processing
Supports simultaneous reading of all items within a bag or tote, eliminating the need for unpacking and repacking.
Reliable performance in retail environments
Consistent read performance across densely packed mixed merchandise.
This setup provides a practical reference for retailers looking to implement scalable, high-performance RFID-enabled self check-out solutions.
