A7060 Linearly Polarised Antenna

Far-field Antennas
A70 Series
Retail
Offices
Asset tracking

The A7060 is a linearly (vertical) polarized high-gain antenna with an ultra-low profile. It is ideal for dense asset tracking when tag orientation is consistent.

About

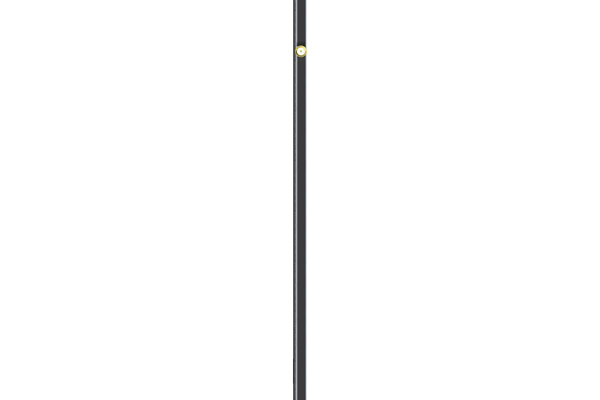

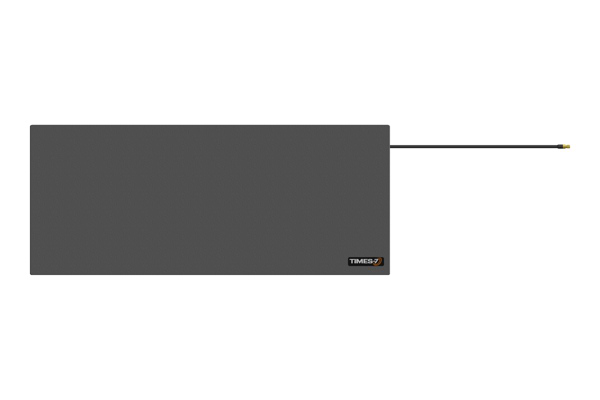

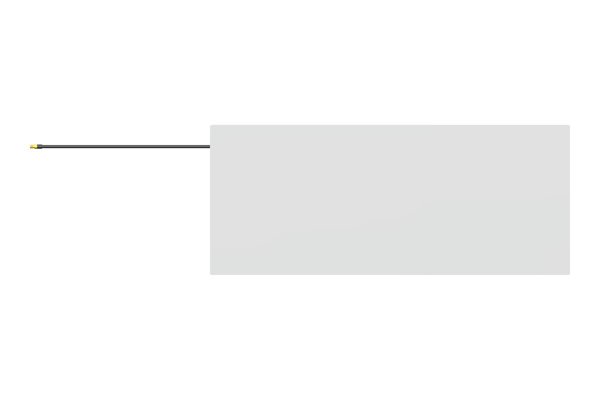

The SlimLine A7060 is an ultra-low profile, linearly polarised flat panel RFID antenna. It is the linear version of the popular A5060, perfect for creating powerful and focused read zones where tag orientation is consistent.

Deep pallet scans and smart shelving are two ideal use cases for this antenna, with it's concentrated "curtain" beam.

Key Benefits:

  • High gain, linear antenna - perfect for tracking densely packed tags (consistent orientation)
  • Focused beam - avoid stray reads with a defined read zone
  • Low profile - fit in space constraint environments

This antenna is a powerful choice for retail, manufacturing, and industrial applications requiring high-accuracy tracking in compact spaces.

Specifications

Dimensions
600 x 250 x 8mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Linearly polarised
Gain
9 dBi
Beamwidth
65° in YZ-plane, 30° in XZ-plane
Environmental Rating
IP54
Connector Type
SMA

Downloads

A7060_Datasheet
.pdf
785 KB

To find more resources for this product, Resources.

Product catalogue

Check out our product catalogue.

Access now
