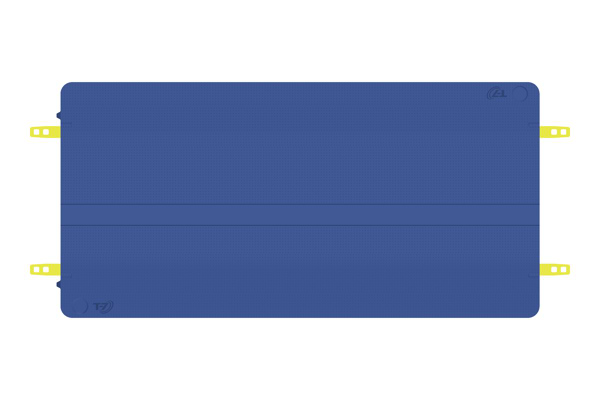

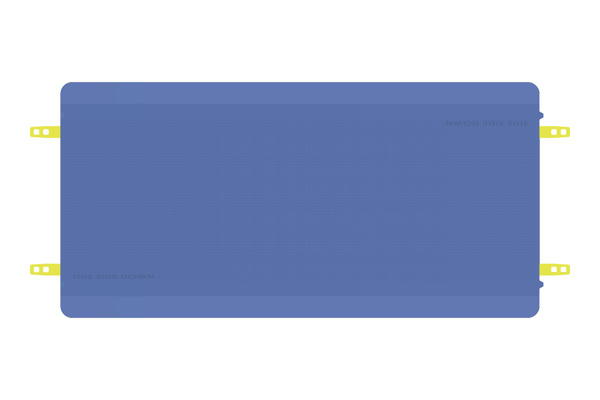

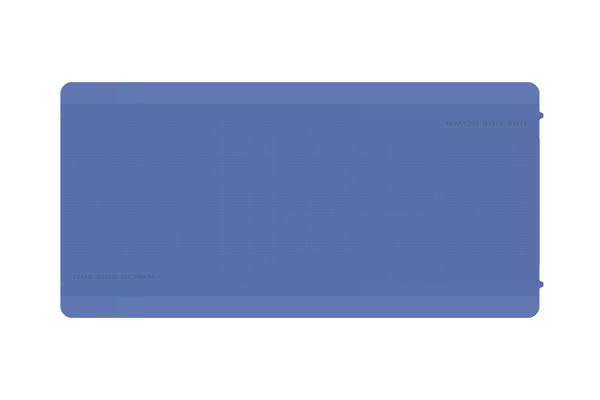

The A5530V is a vertically polarised ground mat antenna designed for tracking moving items, assets, and people, ideal for indoor and outdoor environments where side or overhead antennas aren’t practical.

About

Engineered for floor or ground-level installations, the A5530V delivers high-performance, orientation-dependant reads, making it ideal for race timing, conference attendee tracking, and retail entrance/exit monitoring applications where tag orientations are known. Its robust construction, IP66 rating, and 12 mm slim profile allow it to withstand heavy foot traffic (distributed load support of up to 500kg), cleaning, and challenging environmental conditions.

Designed for easy deployment with minimal disruption, the A5530V creates a reliable read zone without the need for overhead structures or complex mounting systems.

The mat antenna includes an SMB-SMA adapter for increased cable protection and easy replacement. With its plug-and-play capability, this antenna is incredibly versatile, and the integrated housing simplifies setup requirements.

Key Benefits:

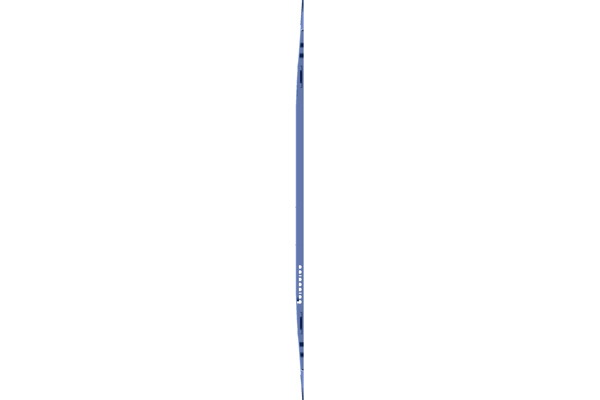

  • Ultra-low profile (12 mm) for unobtrusive floor installation

  • Linear polarisation for selective tag reads based on orientation

  • IP66-rated for durability in indoor and semi-outdoor environments

  • Ideal for race timing, event tracking, logistics, and retail entrances

Specifications

Dimensions
1220 x 600 x 12mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Linearly polarised
Gain
10 dBi
Beamwidth
70° in YZ-plane, 25° in XZ-plane
Environmental Rating
IP66
Connector Type
SMA

Downloads

A5530_Datasheet
.pdf
771 KB

To find more resources for this product, Resources.
