A5020CX Circular Extreme Antenna

Far-field Antennas
A5020 Series
Healthcare
Manufacturing
Medical
Transport
Logistics
Supply Chain
Military
Industrial
Food Processing
Clean Room Environments
Pharmaceutical
Laundry
Clean room environments
Cold chain monitoring
Controlled environments
Food processing environments
Industrial and mining
Waste management

The A5020CX is a compact, rugged RFID antenna engineered for extreme environments, delivering robust circularly polarised performance, and IP68 and IP69K-rated protection for the toughest industrial and outdoor applications.

About

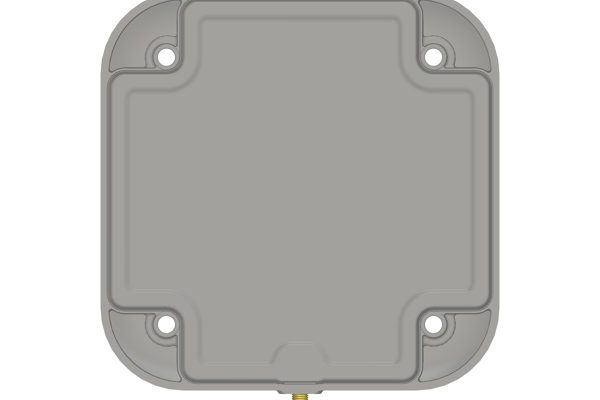

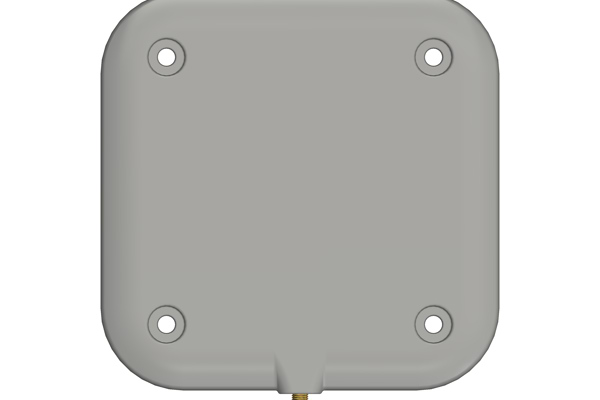

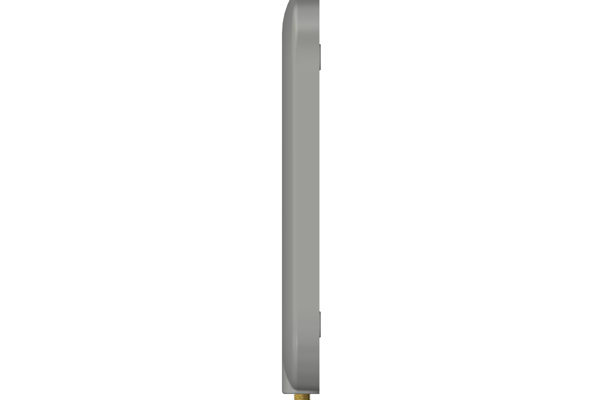

The A5020CX is a high-performing, ultra-low profile circularly polarised RFID antenna, engineered for extreme environments. With a 150 mm square footprint and a sleek design, it offers reliable performance in a compact form with no compromise to aesthetics.

Rated both IP68 and IP69K, the A5020CX withstands high-pressure water cleaning, dirt, and extreme temperatures down to -90°C, making it ideal for medical, pharmaceutical, outdoor, and industrial applications.

Key Benefits:

  • Rated IP68 and IP69K, for protection against high-pressure washing, dirt, and water ingress

  • Compact, durable design blending seamlessly into an environment

  • Simple installation with VESA-compatible or flush mounting options

This antenna is especially well-suited for outdoor installations, industrial asset tracking, food processing facilities, and challenging environments that demand robust, long-lasting RFID performance.

Specifications

Dimensions
150 x 150 x 14mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
5.5 dBiC
Beamwidth
105° in both planes, Symmetrical
Environmental Rating
IP68 & IP69K
Connector Type
SMA

Downloads

A5020CX_Datasheet
.pdf
1 MB
A5020CX Mechanical Drawing and Mounting Plate Revb 11 3 25
.pdf
64 KB
A5020CX_ STEP File 6 3 25
.step
6 MB
