Why the A5010 is an exceptional antenna

The A5010 has a unique combination of benefits, which makes it the best RAIN RFID antenna of its kind. This blog will look at 5 significant benefits of this antenna and how its design enhances customers' experience by simplifying operations and enabling RFID tag reading in challenging situations where other antennas would fail.

Blogs

Times-7

March 21, 2025

A5010 Antenna (Pictorial)

Five significant benefits of the A5010 antenna

A5010 Antenna (Pictorial)
A5010 Antenna (Flush Backplate)

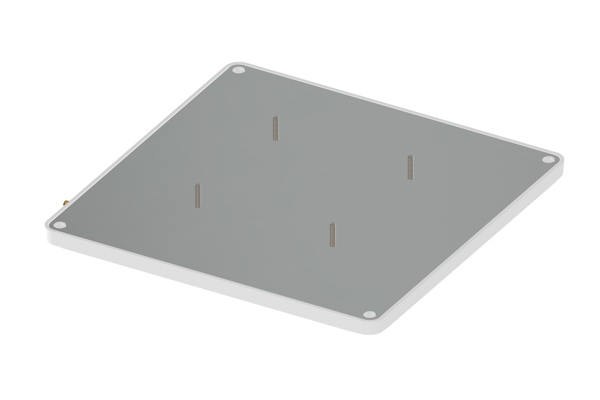

A5010 Antenna (Studded Backplate)

Reflection protection allows uninterrupted read performance

When metal and metallic objects are present, reflective power may pass directly through the antenna to the RFID reader.

When most readers detect this reflected power, they reduce power or shut down completely to protect he reader components. This reduces or ceases the read range and performance.

But advanced A5010 circuitry absorbs reflected power within the antenna, shielding the RFID reader, so it has no need to shut down.

And while the VSWR (voltage standing wave ratio) of most other antennas is highly degraded by reflective environments, the A5010’s reflection protection provides consistently good VSWR.

The A5010 reflection protection benefits are:

  • Limits the risk of damage to the reader
  • Uninterrupted read performance, even in reflective environments
  • Guaranteed recognition by reader

Multiple mounting options through smart design

Mounting using studded backplate

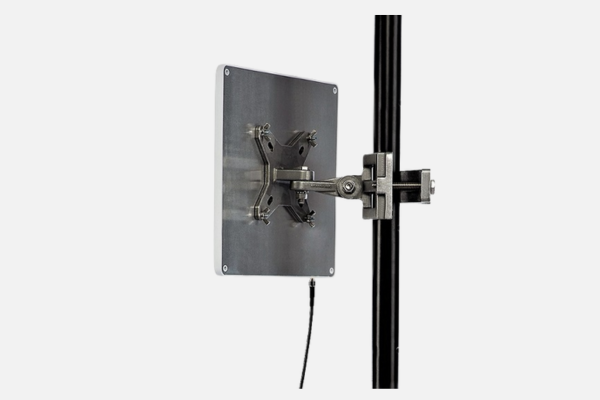

A5010 Mounting Pole
A5010 Antenna (Studded Backplate)
Mount using connector protection backplate

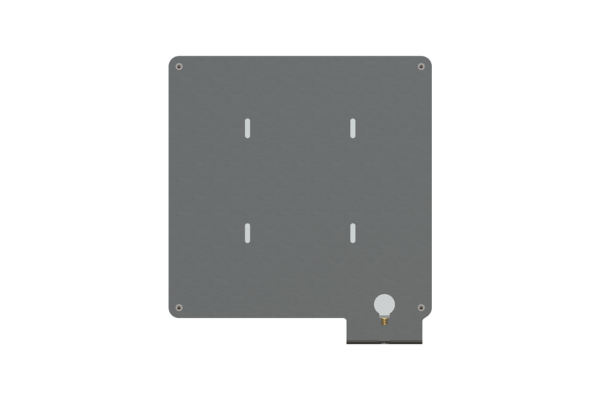

A5010 Back View Connector Protection Backplate
A5010 Angled View Connector Protection Backplate

The A5010 can either be flush, or VESA mounted.

The studded backplate version has VESA spacing, symmetrical in the antenna’s centre. It is compatible with all standard 100mm VESA brackets.

Mounting benefits

  • Perfect for space-constrained applications
  • Can be flush mounted using the four corner holes due to the side connector or VESA bracket mounted
  • A connector protection backplate is also available for this antenna (as a separate accessory) which can be used with right-angled and straight cables

Slim form factor

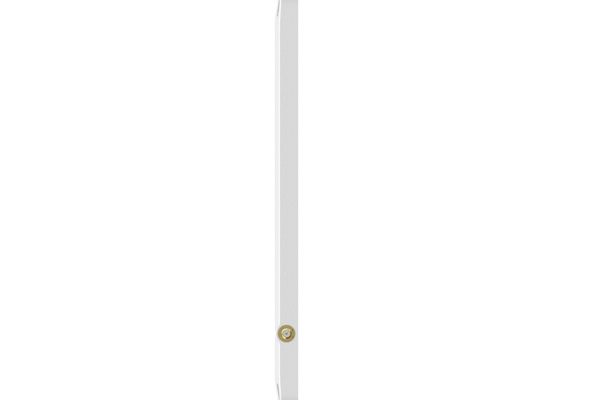

A5010 Flush (side view)
A5010 Antenna (Side Flush)

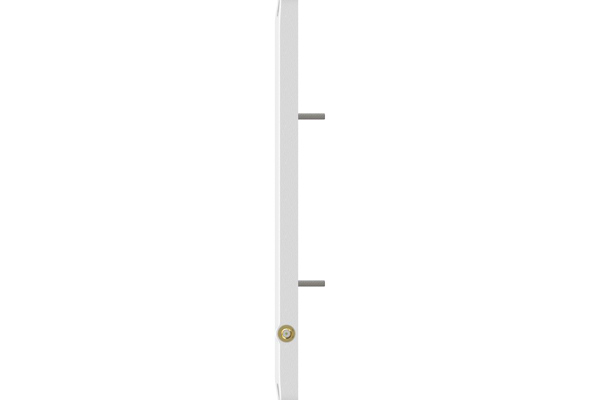

A5010 Stud (side view)
A5010 Antenna (Side Studded)

Thoughtful design and construction methods mean the A5010 is only 14mm ( 0.55") in thickness.

Slim from factor benefits

  • Ideal for space-constrained areas
  • Simple, aesthetically pleasing design blends well into customer-facing settings
  • Allows for integration in a wide range of warehouse shelves and setups.

Low axial ratio

The axial ratio measures the symmetry of the beam in the horizontal and vertical directions. This axial ratio is a critical parameter for a circular antenna, which is expected to read an RFID tag in any orientation.

An axial ratio of zero 0dB is perfect.

The A5010 has less than a 1dB difference in gain on both axes, essentially the same performance as a true circular polarised antenna.

This low axial ratio is an area in which the A5010 excels and provides the following benefits

  • Consistent read rate in all RAIN RFID tag orientations
  • Extended read range in challenging environments.

High IP-rating

IP-rating (or ingress protection) is an international standard. It defines the measure of an enclosure's resistance to intrusion from foreign bodies and moisture.

The A5010 has a rating of IP-67 which is a high water and ingress protection rating.

IP rating benefits

  • Suitable for permanent outdoor use.
  • Also suitable for a variety of indoor applications where disinfection and cleaning of the antenna may be necessary.

Contact us

The A5010 Slimline RFID Antenna is a standout choice for businesses looking for a reliable, and high-performance antenna.  As a recognised leader in RAIN RFID antennas, we are here to help you find the right antenna for your needs.For more information about the A5010 or other related products click the link below.
