About

Add more ruggedness and support to your A5020 antenna

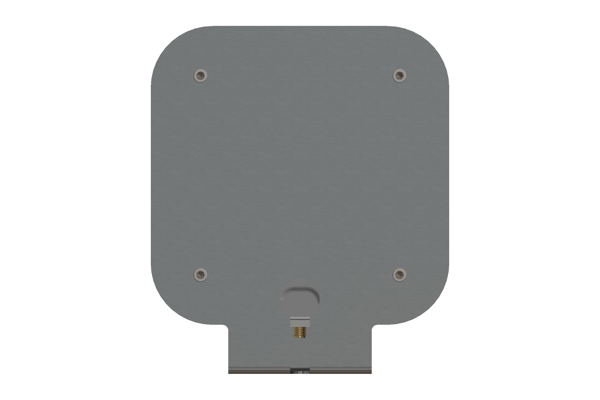

Some industrial applications require the antenna connector to be protected from hits due to moving machinery in the work environment. To provide extra-ruggedness, we have designed a Connector Protection Backplate.

The Connector Protection Backplate can be flush mounted, or VESA mounted. To install the backplate, attach it to the rear side of the antenna. The backplate bends over the connector, held on via the mounting holes. The backplate can be used with right-angled and straight cables.

For the mechanical drawings of the backplates, please refer to the antenna datasheet linked in the table below.



Also available for the A5010 Series.

Specifications

Dimensions
Frequency Range
N/A
Polarisation
N/A
Gain
N/A
Beamwidth
Environmental Rating
N/A
Connector Type
N/A

Downloads

To find more resources for this product, Resources.

Product catalogue

Check out our product catalogue.

Access now
D359e9afb803c562f84c1dbfe9245ebe

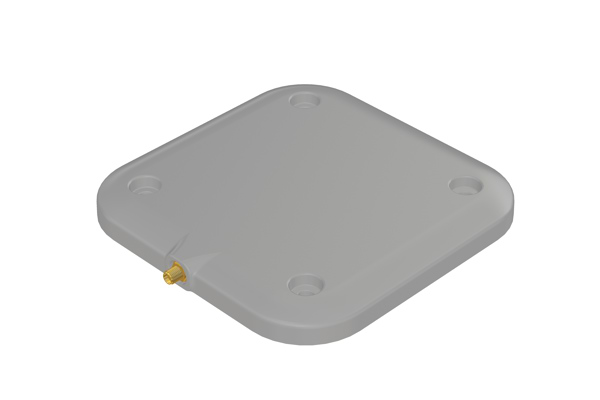

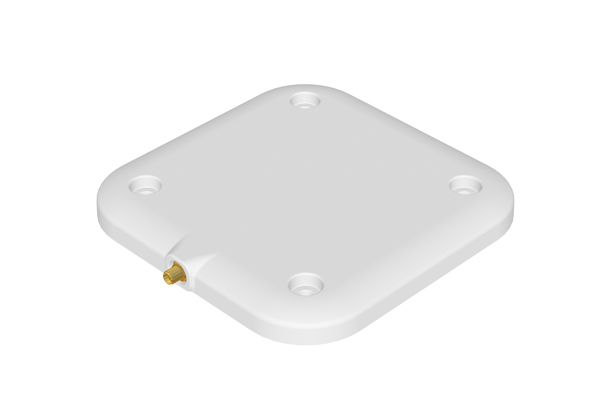

Related products
