The SlimLine A7030C combines an ultra-low profile design with high-performance circular polarisation, delivering robust and consistent read coverage in a sleek, space-efficient form.

About

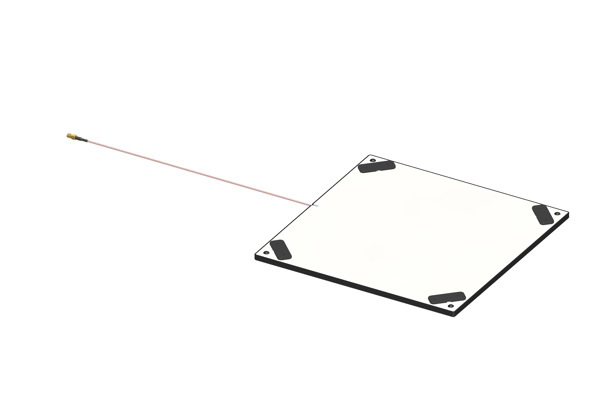

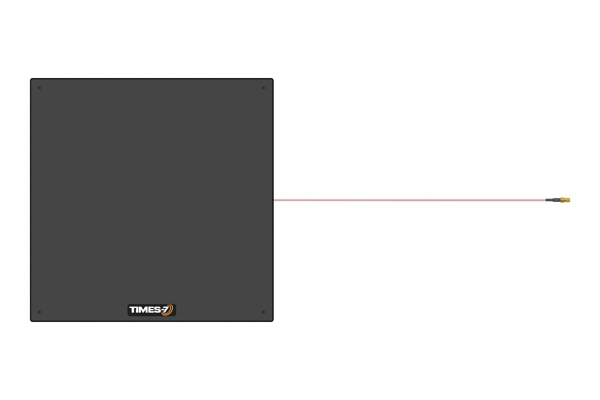

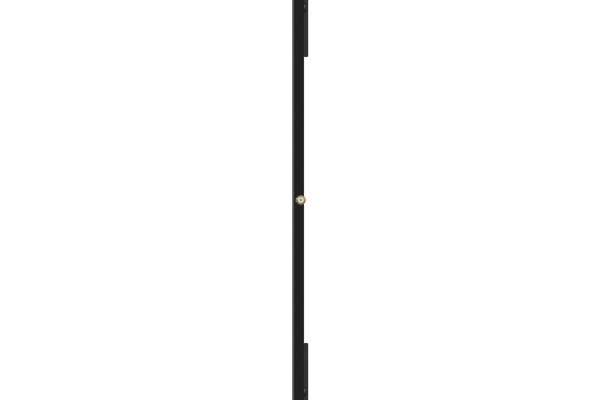

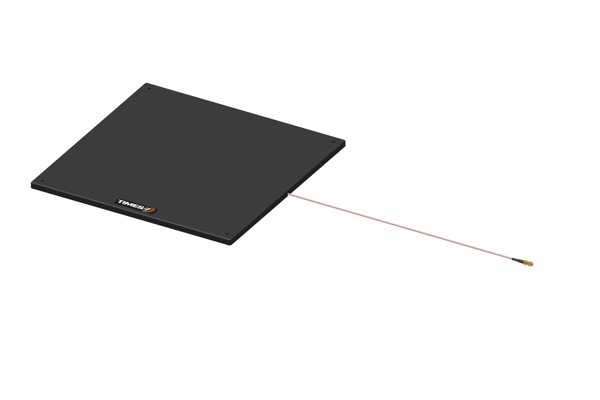

Part of the SlimLine range engineered for shelving specialisation, the A7030C is an ultra-low profile circular polarised flat panel antenna. Built for dependable operation in dynamic environments, the A7030C ensures fast, accurate RFID performance due to optimised performance in both the near-field and far-field ranges.

Its intelligent and scalable "Array-Ability" design allows seamless integration into shelving, doorways, workbenches, and walls, maintaining a clean and professional appearance even in high-traffic or space-constrained areas.

Key Features:

  • Ultra-low profile for discreet installations
  • Strong near-field & far-field performance
  • Circular polarisation for consistent reads regardless of tag orientation
  • Scalable design for flexible deployment into existing installations

Engineered for environments where both aesthetics and functionality matter, the A7030C is ideal for retail item-level tracking, tool tracking, and real-time asset and inventory management across sectors such as logistics, healthcare, and manufacturing.

Specifications

Dimensions
300 x 300 x 8.5 mm (with feet / 11.5 mm)
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
6 dBiC
Beamwidth
65° in both planes, Symmetrical
Environmental Rating
IP54
Connector Type
SMA

Downloads

Datasheet
A7030C_Datasheet
.pdf
610 KB
STEP File
A7030C_STEP File 21 3 25
.step
1 MB
