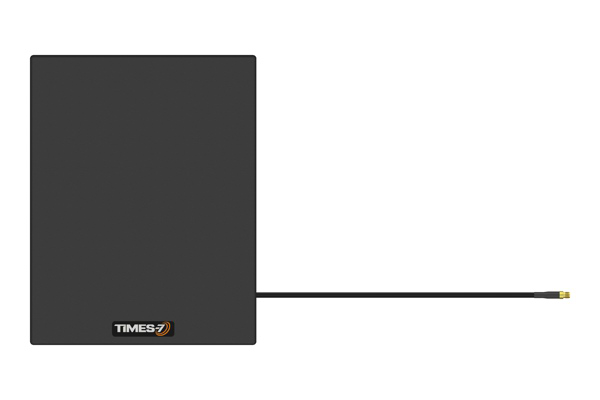

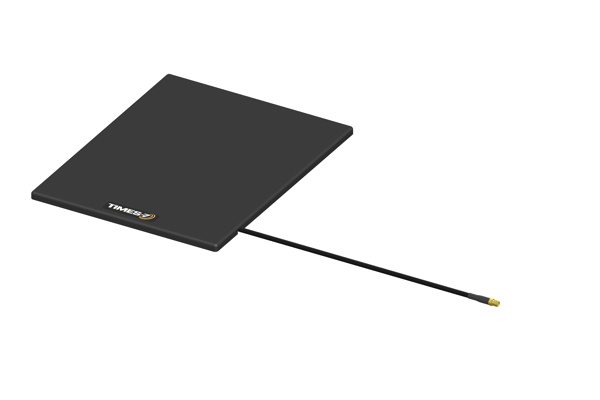

The SlimLine B6031 is an ultra-low profile, circularly polarized flat panel antenna, ideal for office or retail environments.

About

The B6031 is an ultra-low profile, circularly polarised RAIN RFID antenna with a formed radome designed to effortlessly blend in to most environments and serve a wide variety of applications.

With similar dimensions and weight to a Tablet PC, and either flush mounting via pre-drilled mounting holes or VESA bracket mounting via its mounting plate accessory, this antenna is a versatile choice.

Key Benefits:

  • Low profile - perfect for space constraint and customer facing environments
  • Typical read distance of 4-5m - create a focused read area.
  • Multipurpose - ideal for a wide variety of different applications.

With it's sleek formed housing and mounting options, the B6031 can effortlessly integrate into any office or retail setting.

Specifications

Dimensions
279 x 218 x 8.3mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
5 dBiC
Beamwidth
60° in XZ-plane, 80° in YZ-plane
Environmental Rating
IP54
Connector Type
SMA

Downloads

Datasheet
B6031_Datasheet
.pdf
466 KB
Mechanical Drawings
B6031_Mechanical Drawing (Flat) RevD 6 5 25
.pdf
59 KB
Mechanical Drawings
B6031_ Mechanical Drawing (Formed) and Mounting Bracket Rev C 6 5 25
.pdf
58 KB
STEP File
B6031_STEP File (Flat) and Mounting Plate Revc 7-4-25
.step
930 KB
STEP File
B6031_ STEP File (Formed) 7 4 25
.step
837 KB
