Part of Times-7's True NearField™ Series - engineered for precision tracking, zero interference.

About

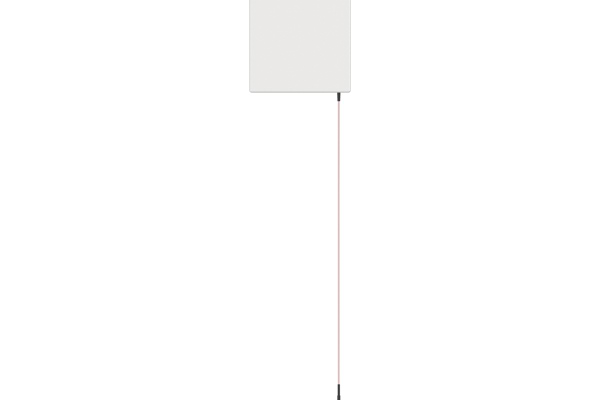

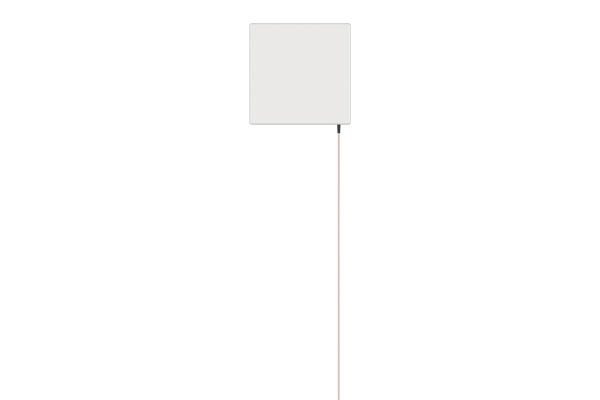

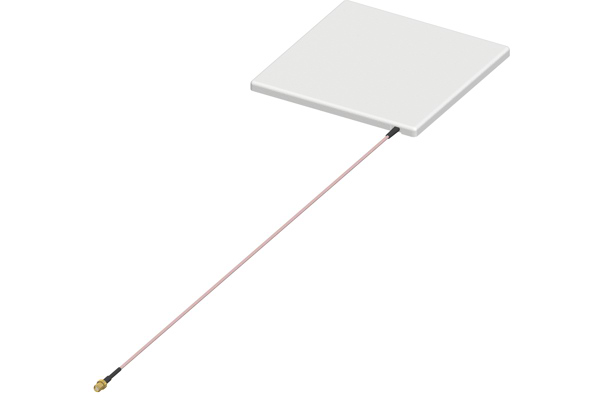

The A1115 True NearField™ Antenna is the most compact model in Times-7’s True NearField™ Series, purpose-built for “near zone only” RFID applications.

Engineered for reliable performance in environments with metal, liquids, and other RF-challenging materials, the A1115 delivers precise, on-surface reads with minimal interference and no dead zones, making it ideal for high-accuracy item-level tracking.

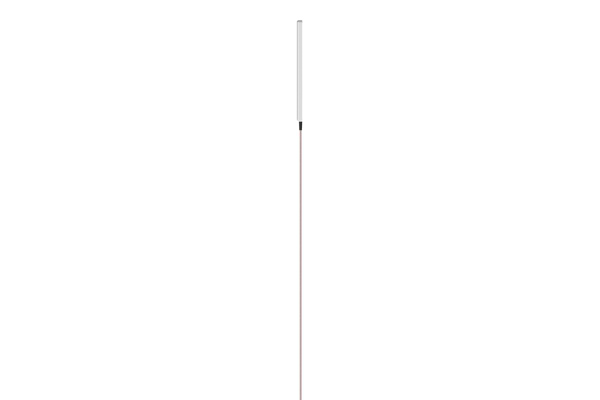

Available in black or white, with the choice of a formed or flat radome, the A1115 is designed to complement a wide range of aesthetic and functional requirements. Integrated rear-side mounting holes and optional self-adhesive rubber feet allow for flexible and seamless installation.

With a compact read area of 150 x 150mm, the A1115 is a popular antenna in healthcare & retail applications.

Specifications

Dimensions
150 x 150 x 8.5mm Flat Radome | 154 x 154 x 8.5mm Formed Radome
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Near-field
Gain
N/A (Far-field Equivalent Gain: -10.5 dBi)
Beamwidth
Near-field - N/A
Environmental Rating
IP54
Connector Type
SMA

Downloads

A1115_Datasheet
.pdf
1 MB
A1115_ Mechanical Drawing (Formed)
.pdf
47 KB
A1115_ Mechanical Drawing (Flat) Revc 9 1 25
.pdf
46 KB
A1115 (Black Formed)_Step File_10 3 25
.step
608 KB
A1115 Antenna (W Formed) 11 3 25
.step
608 KB
A1115_STEP File Black (Flat) 10 3 25
.step
534 KB
A1115_ STEP File White (Flat) 10 3 25
.step
534 KB
