Part of Times-7's True NearField™ Series - engineered for precision tracking, zero interference.

About

The A1130 is part of Times-7's True NearField™ Series, designed for “near zone only” RFID applications.

Engineered for reliable performance in environments with metal, liquids, and other RF-challenging materials, the A1130 delivers precise, on-surface reads with minimal interference and no dead zones, making it ideal for high-accuracy item-level tracking.

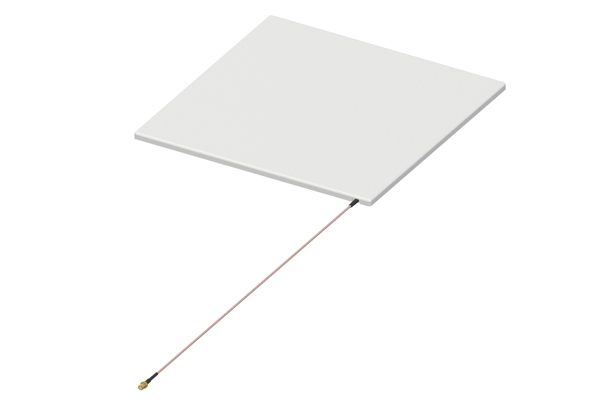

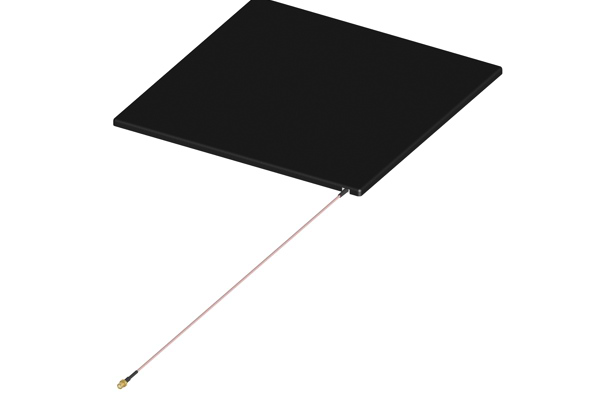

Available in black or white, with the choice of a formed or flat radome, the A1130 is designed to complement a wide range of aesthetic and functional requirements. Integrated rear-side mounting holes and optional self-adhesive rubber feet allow for flexible and seamless installation.

With a versatile read area of 300 x 300mm, the A1130 is a go-to near field antenna for shelving and conveyors.

Specifications

Dimensions
300 x 300 x 8.5mm Flat Radome | 304 x 304 x 8.5mm Formed Radome
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Near-field
Gain
N/A (Far-field Equivalent Gain: -11.5 dBi)
Beamwidth
Near-field - N/A
Environmental Rating
IP54
Connector Type
SMA

Downloads

A1130_Datasheet
.pdf
2 MB
A1130_ Mechanical Drawing (Flat) and Mounting Plate Revb 10 1 25
.pdf
58 KB
A1130_ Mechanical Drawing (Formed) and Mounting Plate Revb 10 1 25
.pdf
60 KB
A1130_ STEP File White (Formed) 11 3 25
.step
601 KB
A1130_ STEP File Black (Formed) 10 3 25
.step
601 KB
A1130_ STEP File White (Flat) 10 3 25
.step
534 KB
A1130_ STEP File Black (Flat) 10 3 25
.step
534 KB
