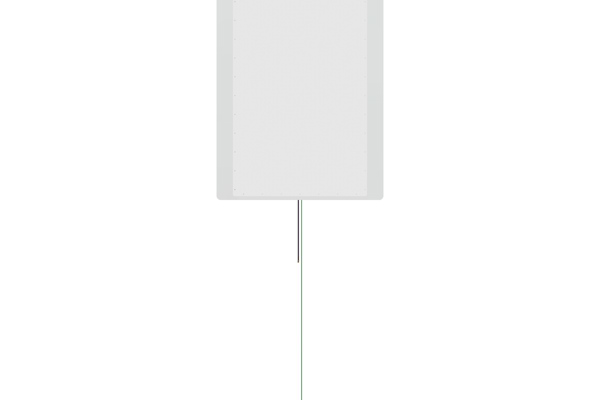

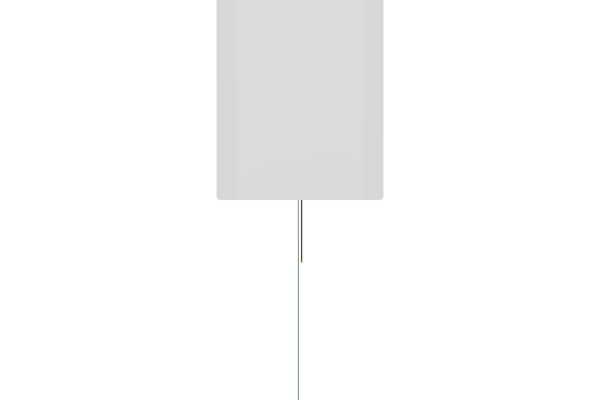

A6011 Circularly Polarised Antenna - 1000 x 800 x 12 mm

Specialised Antennas
Airport Antennas
A6011 Series
Airports
Logistics
Airport baggage tracking
Asset tracking
Baggage handling systems
Conveyor belts
Item-level conveyor belt tracking

The A6011-1000 is the 2nd largest SKU of the A6011, specialized for use in large, bidirectional conveyor systems.

About

The SlimLine A6011 is a circularly polarized flat panel antenna array engineered for conveyor belt-based UHF RFID applications, such as airport baggage handling. Encased in an ultra-low-profile UHMWPE (Ultra-High Molecular Weight Polyethylene) radome, the A6011 is designed for continuous 24x7 operation in environments where downtime is not an option.

This antenna is designed to be affixed directly onto the conveyor frame (under conveyor belt) and has inbuilt ramps (5°) on either side to decrease belt friction. This makes it ideal for bidirectional conveyors.

Key Benefits:

  • Easy to integrate within existing infrastructure
  • Industry leading accuracy rates

Specialized for use in airport baggage tracking or baggage handling systems, we recommend the A6011 for any conveyor belt-based applications.

Specifications

Dimensions
1000 x 800 x 12 mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
10 dBiC
Beamwidth
See Datasheet
Environmental Rating
IP54
Connector Type
SMA

Downloads

A6011_Datasheet
.pdf
643 KB
