The A8065H is the horizontally linear antenna in our A8065 series, engineered for seamless integration into doorways for situations where an overhead antenna is not an option. These antennas turn a doorway door frame into a smart data capturing location, providing visibility on the movement of high value assets to your business.

About

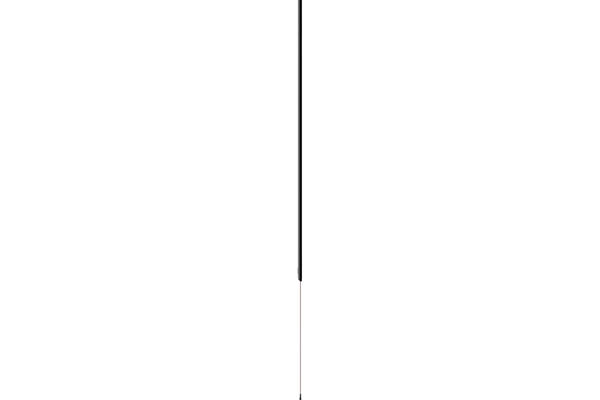

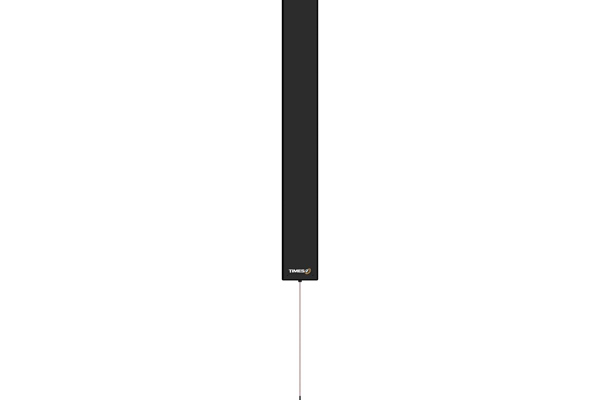

The SlimLine A8065H is an ultra-low profile linear flat panel UHF antenna with no compromise on spatial dimensions. This antenna transforms existing doorways into an RFID read point for spaces where an overhead antenna is not feasible, optimizing space utilization in these high-traffic areas.

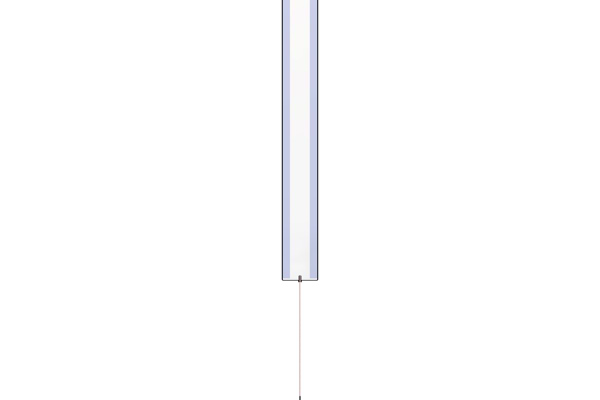

Designed with integrated mounting holes and included adhesive tape for mounting versatility, the A8065H can work as a left or right mounted antenna within its intended doorway use case.

Key Benefits:

  • Doorway sized
  • Easy mounting options

This antenna is ideal for use in asset and people tracking solutions across the healthcare and event industries, with particular suitability for inventory management in office spaces.

Specifications

Dimensions
700 x 90 x 10.5mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Linearly polarised
Gain
6 dBi
Beamwidth
30° in XZ-plane, 110° in YZ-plane
Environmental Rating
IP54
Connector Type
SMA

Downloads

A8065_Combo Datasheet
.pdf
798 KB
A8065H_STEP File 20 3 25
.step
1000 KB

To find more resources for this product, Resources.
