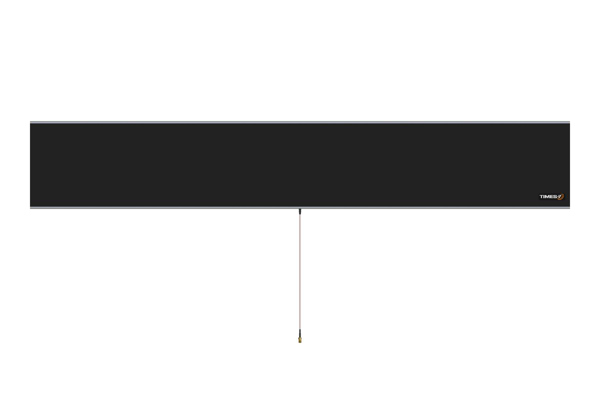

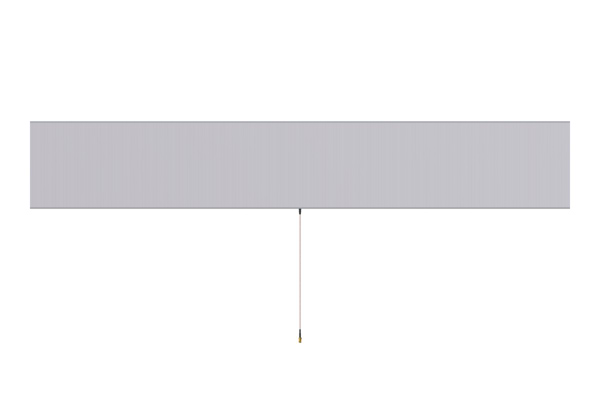

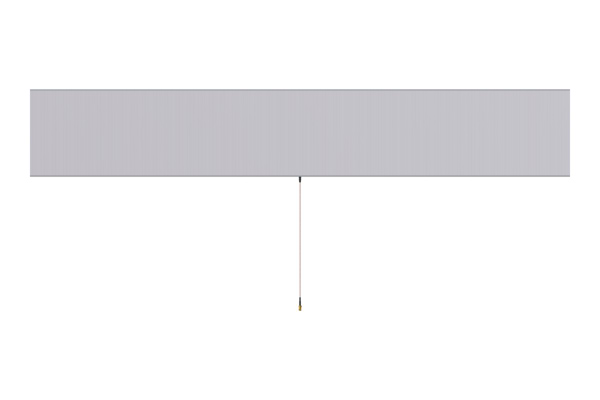

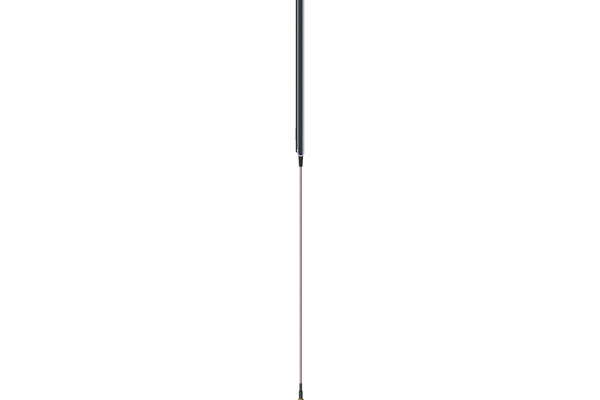

The A5531C is a circularly polarised ground antenna designed for tracking moving items, assets, and people, ideal for environments where side or overhead antennas aren’t practical.

About

As part of our range of specialised ground antennas, the A5531C is a high-performance circularly polarised ground antenna. Optimized for asset and people tracking across access points with its "curtain" beam, this antenna is the go to choice when traditional side or overhead antennas are not an option.

Designed to sit flush to the floor, or inset into it, this antenna boasts a high gain and distributed load support of up to 500kg.

Key Benefits:

  • Slim physical footprint & in-floor mountable - discreet
  • High gain & concentrated beam

The A5531C is engineered for use in applications such as conference attendee tracking, EAS gates and industrial asset tracking.

Specifications

Dimensions
1200 x 195 x 10mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
9.5 dBiC
Beamwidth
13° in XZ-plane, 85° in YZ-plane
Environmental Rating
IP53
Connector Type
SMA

Downloads

A5531_Datasheet
.pdf
767 KB
