A6032 Circularly Polarised Antenna

Far-field Antennas
Retail
Offices
Libraries
Asset tracking
Inventory control
Inventory management
Inventory tracking

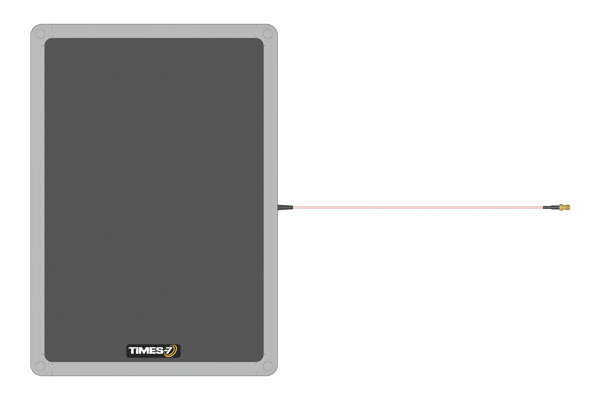

The A6032 is a high-performance, circularly polarised RFID antenna designed for wide-area coverage, combining IP65-rated durability with a low-profile form factor for seamless integration in indoor and outdoor environments.

About

Part of the SlimLine™ range, the A6032 is a rugged circularly polarised UHF RFID antenna designed for multi-purpose applications. Developed with customer-facing environments in mind, this antenna can be flush-mounted to walls for asset tracking or used as a slim counter antenna for efficient inventory management.

This antenna has a mounting plate accessory designed to support VESA brackets for mounting versatility.

Key Benefits:

  • Slim, rugged design for discreet integration.

  • Suitable for both asset tracking and inventory management.

  • Multipurpose antenna for a variety of applications.

This antenna is suitable for retail environments, industrial asset tracking, and any application where a sleek, durable solution is required.

Specifications

Dimensions
390 x 274 x 12.2 mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
7 dBiC
Beamwidth
48° in XZ-plane, 75° in YZ-plane
Environmental Rating
IP65
Connector Type
SMA

Downloads

A6032_Datasheet
.pdf
499 KB
