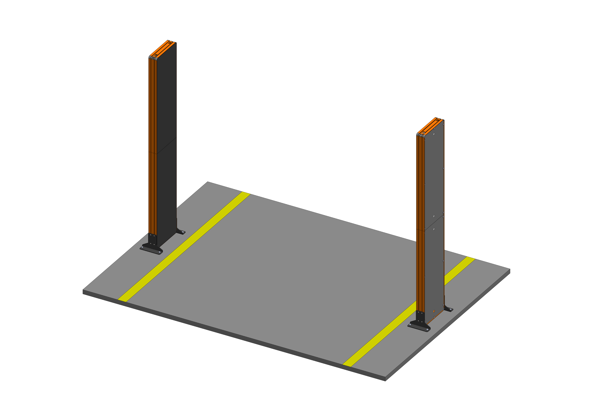

Times-7 Portal System

Maximum coverage for complex loads
Four antenna units provide dual-sided RAIN RFID coverage, making the Portal System well suited to wide openings, tall pallets, variable load dimensions, and mixed-product environments where greater read-zone coverage is required.

Controlled read zone with a smaller keep out zone
Focused 50° beamwidth and high front-to-back ratio help concentrate RF energy within the intended read zone and reduce unwanted reads outside the portal. This allows for a smaller keep zone, which is particularly valuable in space-constrained warehouses and multi-lane environments where tagged goods may be stored or moving nearby.

True circular polarisation for variable tag orientation
True circular polarisation supports reliable tag reads when tag orientation cannot be controlled, making the Portal System better suited to varied packaging and diverse product loads. Combined with dual-sided coverage, this provides greater flexibility when designing RFID infrastructure for complex warehouse applications.

Practical installation
All Times-7 Portal SKUs use localised rear-exit cabling to keep antenna connections within arm's reach. For dual-sided installations, such as in the Times-7 Portal system, the Cable Bridge accessory provides a dedicated route for cables across the portal, supporting a clean and organised installation.

Reader Compatibility
Compatible with standard RAIN RFID readers, allowing system integrators to select the reader that meets their deployment requirements.
