Times-7 Portal System

Maximum coverage for complex loads

Four antenna units provide dual-sided RAIN RFID coverage, making the Portal System well suited to wide openings, tall pallets, variable load dimensions, and mixed-product environments where greater read-zone coverage is required.

Controlled read zone with a smaller keep out zone

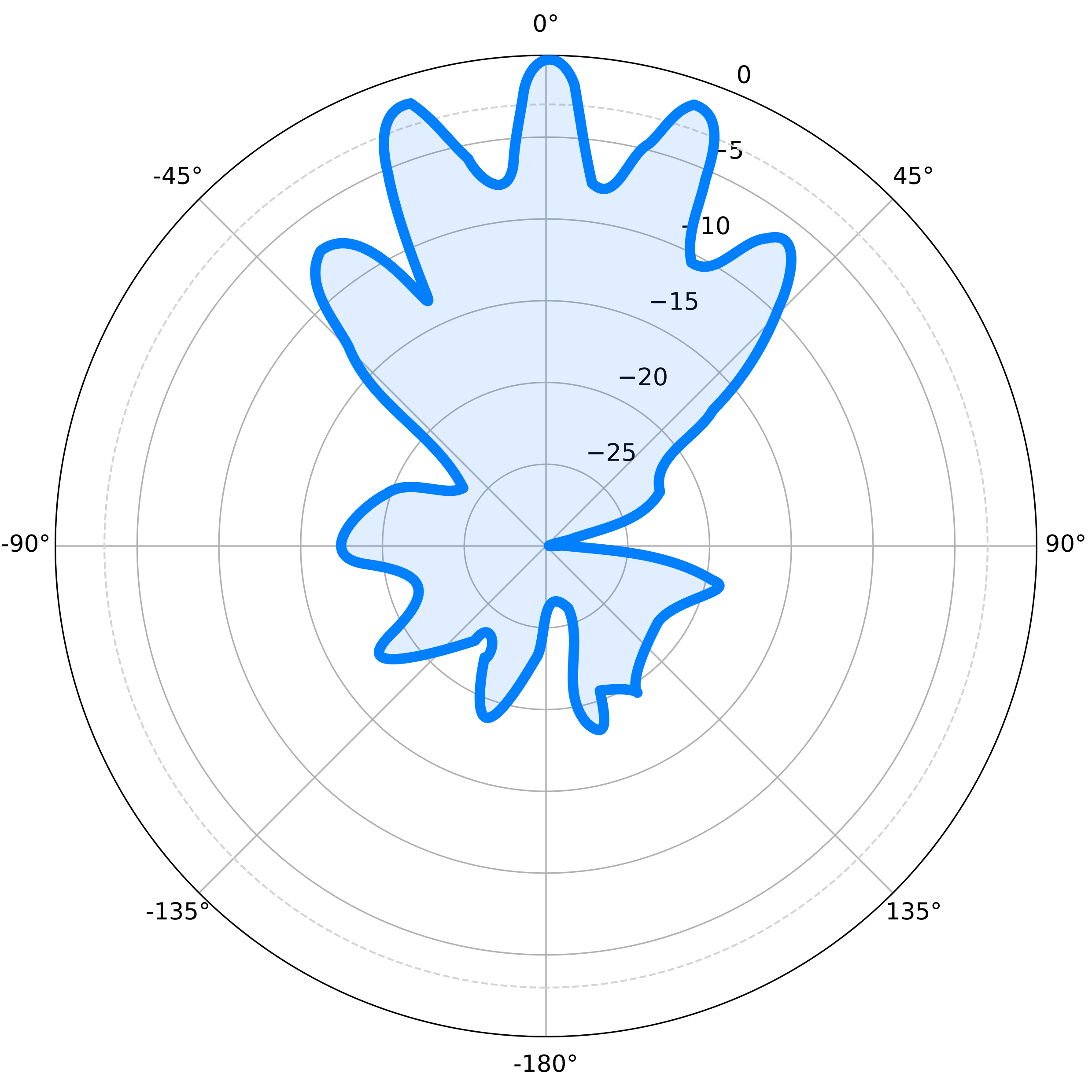

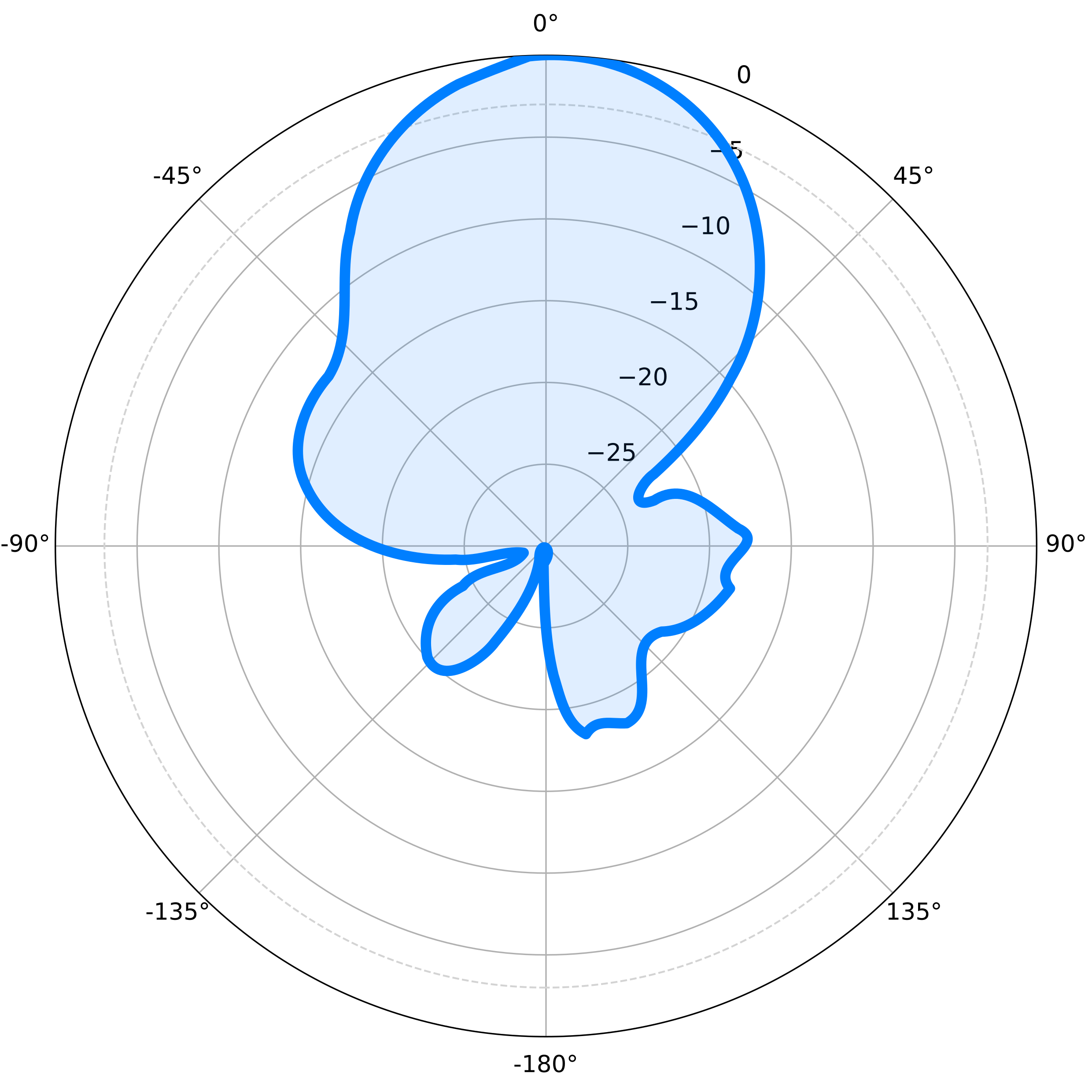

Focused 50° beams and high front-to-back ratio help concentrate RF energy within the intended read zone and reduce unwanted reads outside the portal. This allows for a smaller keep zone, which is particularly valuable in space-constrained warehouses and multi-lane environments where tagged goods may be stored or moving nearby.

True circular polarisation for variable tag orientation

True circular polarisation supports reliable tag reads when tag orientation cannot be controlled, making the Portal System better suited to varied packaging and diverse product loads. Combined with dual-sided coverage, this provides greater flexibility when designing RFID infrastructure for complex warehouse applications.

Flexible, practical installation

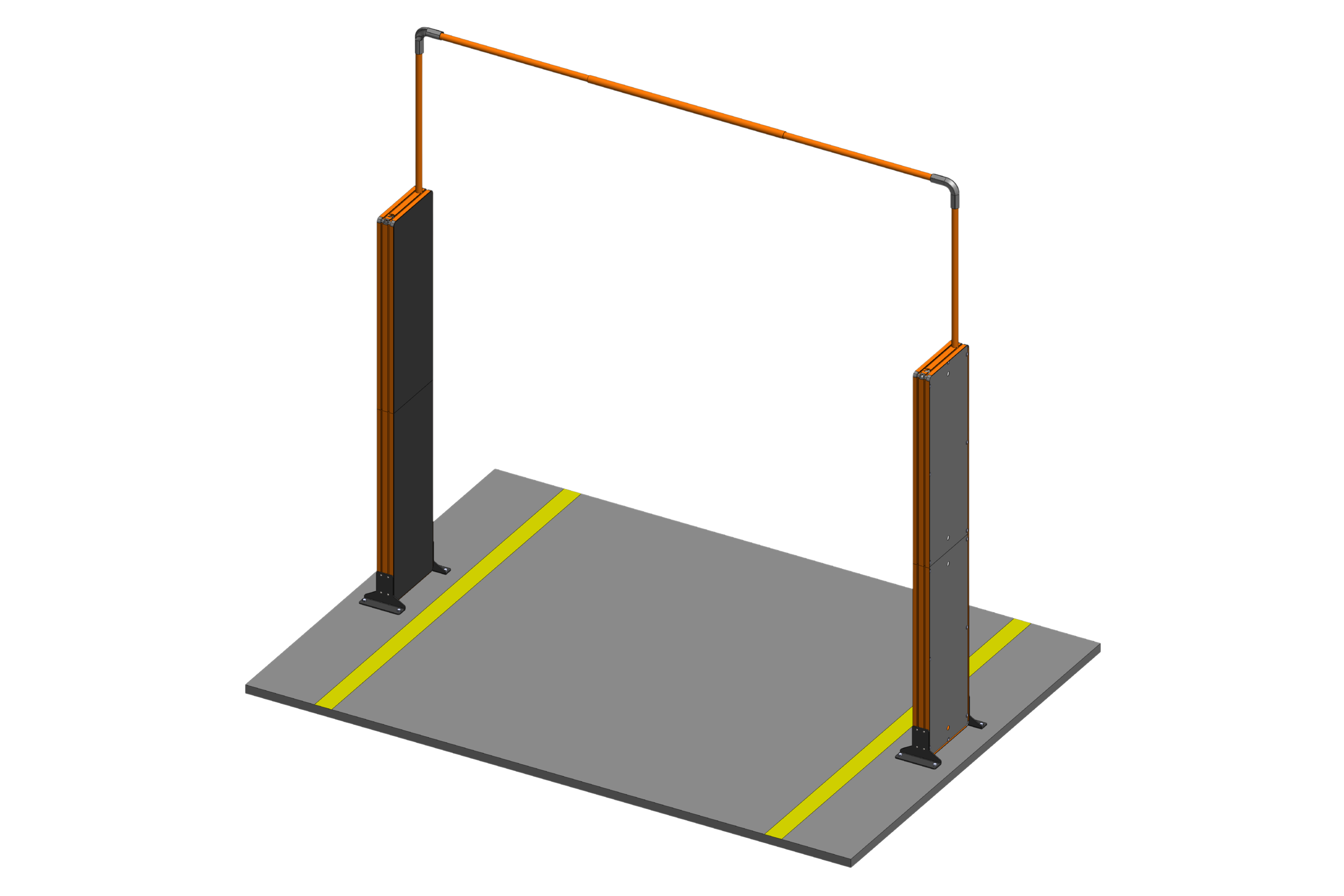

The Portal System is reader agnostic and compatible with standard RAIN RFID readers, making it easier to specify for new deployments or integrate into existing RFID systems. Localised rear-exit cabling supports a clean installation, while the optional Cable Bridge accessory provides dedicated cable management across the portal.
